Plotly Graph Objects#
The main differences between Plotly Express and Graph Objects are:
Plotly Express is designed for long form data (where trace categories are held within a column), whereas Graph Objects works best on wide form data (where trace categories are held across columns).
Graph Objects is fully customisable, and allows for very advanced visualisations, Plotly express is designed to create quick visualisations at the expense of customisation
In Express the entire dataframe is passed to the function, traces are then selected, whereas in Graph Objects each trace is passed separately
Graph Objects requires you to create a Figure, and then apply the traces onto the Figure, Express handles this for you
We will again begin by importing our libraries, for this we will need Pandas and the Plotly Graph Objects library.
import pandas as pd
import numpy as np
import plotly.graph_objects as go
from plotly.subplots import make_subplots
import plotly.figure_factory as ff
We are going to be looking at emergency department attendance and admissions data from NHS England, for ease you can find the .csv file in data folder. We can use the Pandas read_csv function to import this in.
df = pd.read_csv('data/ae_data.csv')
It is good practice to check out the dataframe to ensure it’s imported in the correct format by calling the variable that we assigned it to “df”.
df
| month | ae_type_1 | ae_type_2 | ae_type_3 | emergency_admissions_via_type_1 | emergency_admissions_via_type_2 | emergency_admissions_via_type_3_and_4 | other_emergency_admissions | four_hour_breaches | twelve_hour_breaches | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 01/08/2010 | 1138652 | 54371 | 559358 | 287438 | 5367 | 8081 | 124816 | 3697 | 1 |
| 1 | 01/09/2010 | 1150728 | 55181 | 550359 | 293991 | 5543 | 3673 | 121693 | 5907 | |
| 2 | 01/10/2010 | 1163143 | 54961 | 583244 | 303452 | 5485 | 2560 | 124718 | 6932 | |
| 3 | 01/11/2010 | 1111295 | 53727 | 486005 | 297832 | 5731 | 3279 | 122257 | 7179 | 2 |
| 4 | 01/12/2010 | 1159204 | 45536 | 533001 | 318602 | 6277 | 3198 | 124651 | 13818 | 15 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 159 | 01/11/2023 | 1385701 | 42365 | 734056 | 396755 | 1452 | 4319 | 143110 | 146272 | 42854 |
| 160 | 01/12/2023 | 1383876 | 39282 | 756074 | 406833 | 1327 | 4164 | 134787 | 148282 | 44045 |
| 161 | 01/01/2024 | 1397645 | 42835 | 784555 | 403210 | 1399 | 4561 | 147088 | 158721 | 54308 |
| 162 | 01/02/2024 | 1347297 | 43868 | 761196 | 382133 | 1465 | 4231 | 139515 | 139458 | 44417 |
| 163 | 01/03/2024 | 1462477 | 48922 | 840714 | 419826 | 1515 | 4614 | 141219 | 140181 | 42968 |
164 rows × 10 columns
We can check to make sure the formats are correct with the .info function.
df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 164 entries, 0 to 163
Data columns (total 10 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 month 164 non-null object
1 ae_type_1 164 non-null int64
2 ae_type_2 164 non-null int64
3 ae_type_3 164 non-null int64
4 emergency_admissions_via_type_1 164 non-null int64
5 emergency_admissions_via_type_2 164 non-null int64
6 emergency_admissions_via_type_3_and_4 164 non-null int64
7 other_emergency_admissions 164 non-null int64
8 four_hour_breaches 164 non-null int64
9 twelve_hour_breaches 164 non-null object
dtypes: int64(8), object(2)
memory usage: 12.9+ KB
Before we start working on any data with datetime fields we need to make sure it is in the format that we want. A common issue when graphing is that the date is set to American format (month first) whereas we want it in the UK format (day first). To make sure it’s formatted correctly we can use the pandas function to_datetime.
df['month'] = pd.to_datetime(df['month'], dayfirst=True)
Basic syntax#
Graph Objects requires us to first render a figure, this is a blank template in which we can start to build (by layering) our graph.
fig = go.Figure()
If we call this, we can see that it is a blank graph
fig.show()
Unlike the Express library, we use Traces to add lines to the graph (the Figure), each measure from our dataframe is added as a separate trace. For example, if we want to create a line chart, first we need to add a trace, and then we need to use the Scatter sub library to create a line chart.
Lets breakdown how the add trace function works;
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'], y=df['ae_type_1']))
fig.show()
If we want to add a subsequent line we call the add trace argument again.
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'], y=df['ae_type_1']))
fig.add_trace(go.Scatter(x=df['month'], y=df['emergency_admissions_via_type_1']))
fig.show()
Activity:
Beginner:
Create a line chart using the type 2 categories in the dataframe (there should be two traces).
Advanced:
Create a line chart using a for loop on any three columns in the dataframe.
# Your code here
Customising the Traces#
Because we are calling the traces individually, it means we can customise each trace individually, this is where the customisation of graph objects comes in. For example to name our traces we can use:
Naming Traces
We can individually name our traces by using the name parameter in the type of trace function.
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'], y=df['ae_type_1'], name='AE Type 1 Attendances'))
fig.add_trace(go.Scatter(x=df['month'], y=df['emergency_admissions_via_type_1'], name='Type 1 Emergency Admissions'))
fig.show()
Colours
To change the colour of the traces we can use the line_color parameter, there are three options to choose from when selecting colours.
Static colours are the literal name of the colour, for example ‘blue’. While easy to understand this way of assigning colours is very limited and only really useful if you want either a white or black item.
Hex codes begin with a # and are followed by a blend of 6 numbers or letters: For example a blue colour code would look like #0080ff. You can add two additional characters to define the opacity.
RGB codes define the red, green and blue required to create the colour, you can also specify the transparency in the fourth slot. The same colour above in RGB would be rgb(0, 128, 255) I could then make this have 50% opacity using rgb(0, 128, 255, .5)
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_1'],
name='AE Type 1 Attendances',
line_color='#0080ff')
)
fig.add_trace(go.Scatter(x=df['month'],
y=df['emergency_admissions_via_type_1'],
name='Type 1 Emergency Admissions',
line_color='#e32636')
)
fig.show()
Line Patterns
There are two ways that we can edit the line patterns.
Using the Mode parameter like this.
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'], y=df['ae_type_1'],
mode='lines', # mode: to change the line pattern
name='ae_type_1'))
fig.add_trace(go.Scatter(x=df['month'], y=df['ae_type_2'],
mode='lines+markers', # mode: to change the line pattern
name='ae_type_2'))
fig.add_trace(go.Scatter(x=df['month'], y=df['ae_type_3'],
mode='markers', # mode: to change the line pattern
name='ae_type_3'))
fig.show()
or using the line parameter.
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_1'],
name='ae_type_1',
line = dict(color='black', # line: Use the dictionary to change the line pattern
width=4,
dash='dash')
)
)
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_2'],
name='ae_type_2',
line = dict(color='#0080ff', # line: Use the dictionary to change the line pattern
width=4,
dash='dot')
)
)
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_3'],
name='ae_type_3',
line=dict(color='#e32636', # line: Use the dictionary to change the line pattern
width=4,
dash='dot')
)
)
fig.show()
Adding Titles#
Remember, the update layout functions (fig.update_layout) all work with Graph Objects too!
So, let’s add a title and set the font.
fig = go.Figure()
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_1'],
name='ae_type_1',
line = dict(color='black',
width=4,
dash='dash')
)
)
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_2'],
name='ae_type_2',
line = dict(color='#0080ff',
width=4,
dash='dot')
)
)
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_3'],
name='ae_type_3',
line=dict(color='#e32636',
width=4,
dash='dot')
)
)
fig.update_layout(title='AandE Attendances by Type',
font=dict(family='Arial, monospace'),
)
fig.show()
Activity
Beginner: Create a Line chart using any three columns from the dataframe, include:
- Colour Coding
- Named traces
- Chart titles (including axis)
- Margins reduced
- Include a legend
Advanced: Create the above as an Area chart (you will need to use the plotly graphing documentation here: https://plotly.com/python/
# Your code here
Using Loops#
We have already seen that multiple traces can be added by adding more instances of fig.add_trace.
Another approach to this is to create a loop that will add the multiple traces.
We can use a list of the trace names to do this.
fig = go.Figure()
for i in ['ae_type_1', 'ae_type_2', 'ae_type_3', 'emergency_admissions_via_type_1']:
fig.add_trace(go.Scatter(x=df['month'], y=df[i], name=i))
fig.show()
Nested Loops used with example of Area plots#
Area plots can easily be created by adding a parameter of fill to the trace type go.Scatter plot.
There are different fill options available:
# read these as: 'to self', 'to next y', and 'to zero y'.
fill_options = ['toself','tonexty','tozeroy']
for option in fill_options:
fig = go.Figure()
for i in ['ae_type_1', 'ae_type_2', 'ae_type_3', 'emergency_admissions_via_type_1']:
fig.add_trace(go.Scatter(x=df['month'],
y=df[i],
fill=option, # fill added to change to an Area plot
name=i))
fig.update_layout(title='Chart for '+ i + ' - using area fill option: <b>' + option +'</b>' ,
font=dict(family='Arial, monospace'),
)
fig.show()
Subplots#
Figure: refers to the entire graphical representation that contains one or more plots, charts, graphs, or other visual elements. Figures often consist of multiple subplots arranged in a grid or other configurations to display different aspects of the data or to compare multiple datasets.
Plot: is a specific type of visual representation within a figure that displays data points or statistical summaries in a graphical format. Each plot typically consists of axes, along with markers, lines, bars, or other graphical elements that represent the data.
Sometimes it might be better to show traces on their own independent charts within a figure.
Subplots can be used to divide a figure into sections each having its own chart. For this we have to import make_subplots from the plotly.subplots library.
from plotly.subplots import make_subplots
We are going to use the four traces from the last example. So firstly, we need to set up the subplot grid of 2 rows and 2 columns.
# Create subplots: 2 rows and 2 columns with titles
fig = make_subplots(rows=2, cols=2,
subplot_titles=['1', '2', '3', '4'])
fig.show()
Now we can add our traces the same as we have previously, each with an additional parameter of referencing the row and column of where to be placed in the subplot grid.
fig = make_subplots(rows=2, cols=2,
subplot_titles=['1', '2', '3', '4'])
# Add traces to the respective subplots
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_1'],
name='ae_type_1'),
row=1, col=1) # position 1
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_2'],
name='ae_type_2'),
row=1, col=2) # position 2
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_3'],
name='ae_type_3'),
row=2, col=1) # position 3
fig.add_trace(go.Scatter(x=df['month'],
y=df['emergency_admissions_via_type_1'],
name='emergency_admissions_via_type_1'),
row=2, col=2) # position 4
fig.show()
The proper subplots titles can be added, and using fig.update_layout the usual layout options can also be applied.
Setting the y-axis to zero is also important here as each plot is currently displaying a different scale, which could be misleading when comparing the plots.
fig = make_subplots(rows=2, cols=2,
subplot_titles=['ae_type_1', # proper subplot title as a list to match the trace positions
'ae_type_2',
'ae_type_3',
'emergency_admissions_via_type_1'])
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_1'],
name='ae_type_1'),
row=1, col=1)
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_2'],
name='ae_type_2'),
row=1, col=2)
fig.add_trace(go.Scatter(x=df['month'],
y=df['ae_type_3'],
name='ae_type_3'),
row=2, col=1)
fig.add_trace(go.Scatter(x=df['month'],
y=df['emergency_admissions_via_type_1'],
name='emergency_admissions_via_type_1'),
row=2, col=2)
fig.update_layout(title='AandE Attendances and Admissions by Type', # layout preferences
title_x=0.5, # Center the title horizontally
font=dict(family='Arial, monospace'),
showlegend=False,
width=900,
height=500,
margin=dict(b=0, t=50, l=0, r=0),
yaxis=dict(rangemode="tozero"), # set the y-axis for each plot to start from zero
yaxis2=dict(rangemode="tozero"),
yaxis3=dict(rangemode="tozero"),
yaxis4=dict(rangemode="tozero"),
)
fig.show()
Lists can be used for adding the traces instead of repeating fig.addtrace each time.
This is gives the same result as before, with fewer lines of code.
fig = make_subplots(rows=2, cols=2,
subplot_titles=['ae_type_1', # proper subplot title as a list to match the trace positions
'ae_type_2',
'ae_type_3',
'emergency_admissions_via_type_1'])
# define the traces in order
traces = ['ae_type_1', 'ae_type_2', 'ae_type_3', 'emergency_admissions_via_type_1']
# define their respective positions for the subplot
positions = [(1, 1), (1, 2), (2, 1), (2, 2)]
# add traces to the respective subplots using the defined lists
for trace, pos in zip(traces, positions):
fig.add_trace(go.Scatter(x=df['month'], y=df[trace], name=trace), row=pos[0], col=pos[1])
fig.update_layout(title='AandE Attendances and Admissions by Type',
title_x=0.5,
font=dict(family='Arial, monospace'),
showlegend=False,
width=900,
height=500,
margin=dict(b=0, t=50, l=0, r=0),
yaxis=dict(rangemode="tozero"),
yaxis2=dict(rangemode="tozero"),
yaxis3=dict(rangemode="tozero"),
yaxis4=dict(rangemode="tozero"),
)
fig.show()
Activity
Beginner: Create a figure with two subplots - 1 row and 2 columns.
One plot for
ae_type_1and the other plot foremergency_admissions_via_type_1.
Advanced: Create a figure with six subplots - 3 rows and 3 columns.
The first column of subplots each showing the traces
ae_type_1,ae_type_2andae_type_3.Then the second column of subplots showing traces
emergency_admissions_via_type_1,emergency_admissions_via_type_2,emergency_admissions_via_type_3_and_4.
# Your code here
Tables#
Plots can also be used to display tables of the raw data alongside your charts.
The basic plot is set like this to read all the columns in the dataframe. See https://plotly.com/python/table/ for more details.
fig = go.Figure(data=[go.Table(
header=dict(values=list(df.columns),
fill_color='paleturquoise',
align='left'),
cells=dict(values=[df[col] for col in df.columns],
fill_color='white',
align='left'))
])
fig.show()
Instead of using the whole dataframe, we can specify certain columns.
# Table figure
fig = go.Figure(data=[go.Table(
header=dict(values=['Month', # selected columns for the header
'AE Type1',
'AE Type2',
'AE Type3',
'AE Admissions Type1'],
fill_color='lightblue',
align='left'),
cells=dict(values=[df['month'], # selected columns for the values
df['ae_type_1'],
df['ae_type_2'],
df['ae_type_3'],
df['emergency_admissions_via_type_1']],
fill_color='white',
align='left'))
])
fig.update_layout(
title='Table of AE Type 1 Attendances and Emergency Admissions',
title_x=0.5,
height=500,
width=950
)
fig.show()
To make the output of the columns more readable, we may need to carry out some data formatting on the actual dataframe.
Dates to be formatted as dd/mm/yyyy.
numerical columns to include a thousand separator.
# format the date column to dd/mm/yyyy
df['formatted_month'] = pd.to_datetime(df['month']).dt.strftime('%d/%m/%Y')
# Change the format so that numerical columns have a thousand separator
df['formatted_ae_type_1'] = df['ae_type_1'].apply(lambda x: f"{x:,}")
df['formatted_ae_type_2'] = df['ae_type_2'].apply(lambda x: f"{x:,}")
df['formatted_ae_type_3'] = df['ae_type_3'].apply(lambda x: f"{x:,}")
df['formatted_emergency_admissions_via_type_1'] = df['emergency_admissions_via_type_1'].apply(lambda x: f"{x:,}")
fig = go.Figure(data=[go.Table(
header=dict(values=['Month',
'AE Type1',
'AE Type2',
'AE Type3',
'AE Admissions Type1'],
fill_color='lightblue',
# line_color='darkslategray',
align='left'),
cells=dict(values=[df['formatted_month'],
df['formatted_ae_type_1'],
df['formatted_ae_type_2'],
df['formatted_ae_type_3'],
df['formatted_emergency_admissions_via_type_1']],
fill_color='white',
# line_color='darkslategray',
align='left'))
])
fig.update_layout(
title='Table of AE Type 1 Attendances and Emergency Admissions',
title_x=0.5,
height=500,
width=950
)
fig.show()
Changing the height of the overall figure ultimately changes the number of visible rows displayed.
Font and border colours can also be easily changed.
# format the date column to dd/mm/yyyy
df['formatted_month'] = pd.to_datetime(df['month']).dt.strftime('%d/%m/%Y')
# Change the format so that numerical columns have a thousand separator
df['formatted_ae_type_1'] = df['ae_type_1'].apply(lambda x: f"{x:,}")
df['formatted_ae_type_2'] = df['ae_type_2'].apply(lambda x: f"{x:,}")
df['formatted_ae_type_3'] = df['ae_type_3'].apply(lambda x: f"{x:,}")
df['formatted_emergency_admissions_via_type_1'] = df['emergency_admissions_via_type_1'].apply(lambda x: f"{x:,}")
fig = go.Figure(data=[go.Table(
header=dict(values=['Month',
'AE Type1',
'AE Type2',
'AE Type3',
'AE Admissions Type1'],
fill_color='#00789c', # set the fill colour to a darker blue
font_color='#ffffff', # change the font to white
line_color='darkslategray', # adding line border colour to the header
align='left'),
cells=dict(values=[df['formatted_month'],
df['formatted_ae_type_1'],
df['formatted_ae_type_2'],
df['formatted_ae_type_3'],
df['formatted_emergency_admissions_via_type_1']],
fill_color='white',
line_color='darkslategray', # adding line border colour to the body
align='left'))
])
fig.update_layout(
title='Table of AE Type 1 Attendances and Emergency Admissions',
title_x=0.5,
height=350, # changing the height of the figure will change the number of visible rows.
width=950
)
fig.show()
Activity:
Inspect the dataframe and create a table using four different columns from what we have been working with.
Format the data as appropriate, and style the table.
# Your code here
Geospatial Plotting#
Use when visualising and analyzing data that has a geographical or spatial component.
HexBin
We can plot geospatial data is to use a hexbin plot when we have latitude and longitude data.
For this we need to import a new plotly package called plotly.figure_factory.
# import figure factory with the conventional alias of ff
import plotly.figure_factory as ff
The plotly.figure_factory module contains dedicated functions for creating very specific types of plots.
Read the Excel file containing latitude and longitude data for Somerset.
We are going to add some synthetic data, in this case a random number, to the dataset in order to plot some values onto a hexbin plot.
# read in the Excel file
df_geo = pd.read_excel("data/lat_long.xlsx")
# add a random number
df_geo["n"] = df_geo.apply(lambda x: np.random.normal(0, 0.1, 1).item(), axis=1)
# our synthetic dataset
df_geo.head(5)
| lsoa | Longitude_1m | Latitude_1m | n | |
|---|---|---|---|---|
| 0 | E01029028 | -2.510712 | 51.143863 | -0.050931 |
| 1 | E01029032 | -2.324633 | 51.241551 | 0.191285 |
| 2 | E01029037 | -2.330884 | 51.222363 | -0.157155 |
| 3 | E01029038 | -2.320693 | 51.220853 | 0.002244 |
| 4 | E01029053 | -2.426655 | 51.244343 | -0.001613 |
To build up the plot we use ff.create_hexbin_mapbox.
Further documentation on hexbin plotting can be found here: https://plotly.com/python/hexbin-mapbox/.
fig = ff.create_hexbin_mapbox(
data_frame=df_geo, lat="Latitude_1m", lon="Longitude_1m", # dataframe and latitude and longitude columns
nx_hexagon=15, # size of the hexbins
opacity=0.6, # opacity value
labels={"color": "Count"}, # labels for the colours
mapbox_style='open-street-map', # use open-street-map for the map style
min_count=1, # the minimum number of values used to show the hexbin
color_continuous_scale='viridis', # colour palette
)
fig.show()
The plot is fully interactive and enabling to zoom in and out on sections of interest.
As with graph objects we can update the figure layout with a title and change the size of the figure etc.
There are other types of map styles that are available: https://plotly.com/python/mapbox-layers/
fig = ff.create_hexbin_mapbox(
data_frame=df_geo, lat="Latitude_1m", lon="Longitude_1m",
nx_hexagon=15,
opacity=0.6,
labels={"color": "Count"},
mapbox_style='carto-positron', # change the map style
min_count=1,
color_continuous_scale='viridis',
)
# update the layout and size of the figure
fig.update_layout(title='Map of Synthetic Data across Somerset',
font=dict(family='Arial, monospace'),
width=700,
height=400,
margin=dict(b=0, t=35, l=0, r=0),
)
fig.show()
Currently, the map is just plotting a count of the values per latitude and longitude.
To use the synthetic data column of ‘n’ in the dataframe, we can specify the color and an agg_func that will aggregate the values.
fig = ff.create_hexbin_mapbox(
data_frame=df_geo, lat="Latitude_1m", lon="Longitude_1m",
nx_hexagon=15,
opacity=0.6,
color="n", # reference the column that is to be represented by the colour
agg_func=np.sum, # sum the data
labels={"color": "Sum of n"}, # change the label on the colour scale
mapbox_style='carto-positron',
min_count=1,
color_continuous_scale='viridis',
)
fig.update_layout(title='Map of Synthetic Data across Somerset',
font=dict(family='Arial, monospace'),
width=700,
height=400,
margin=dict(b=0, t=35, l=0, r=0),
)
fig.show()
Activity:
Using the plotly documentation, add the individual data points to the graph and adjust the colour scale to align with your visual vocabulory document. What are the risks of adding individual data points?
https://plotly.com/python/builtin-colorscales/
# Your code here
Capstone Activity - Graph Objects#
Waterfall plots are a powerful way to show changes over a time series, they show the addition and subtraction of records by data point.

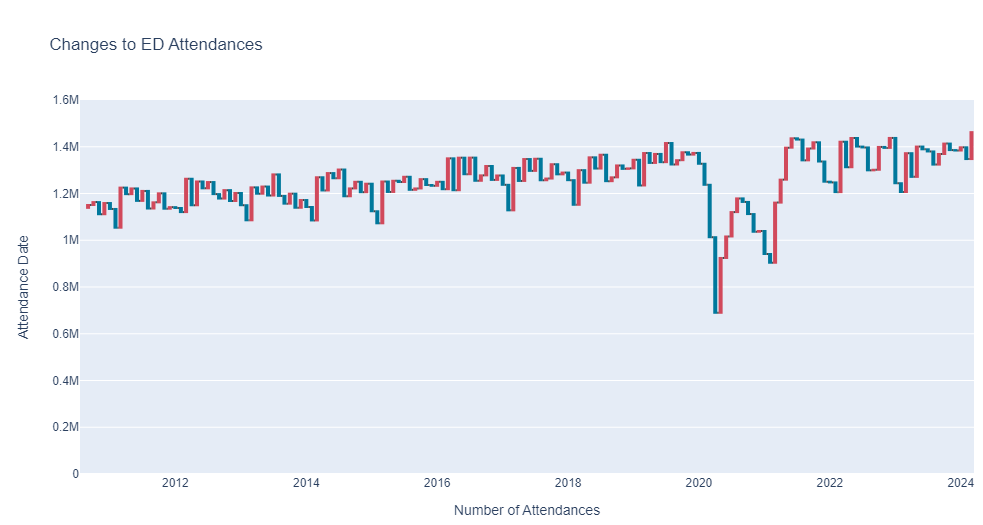

Create a Waterfall plot of AE Type one attendances, here is what it should look like (but make sure you format it in your style!)
hint: you will need to use the shift function in pandas to format the data correctly
